DIODES

Mobirise

BAT42/BAT43

DO-35 Single Schottky Diodes in Axial Leaded Glass Package

Mobirise

BAR43 Series

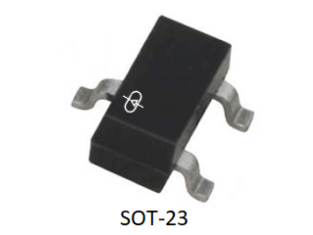

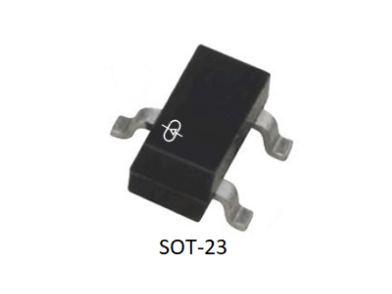

SOT-23 Single/Dual Schottky Diodes in SMD Plastic Package

Mobirise

1N4148WS

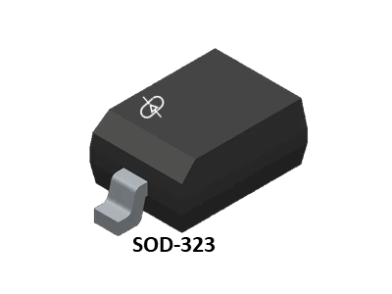

SOD-323 Single/Dual Switching Diodes in SMD Plastic Package

Mobirise

CMBD914

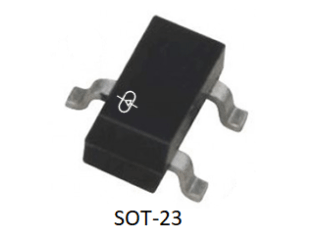

SOT-23 Single Switching Diodes in SMD Plastic Package

Mobirise

CMBD4148

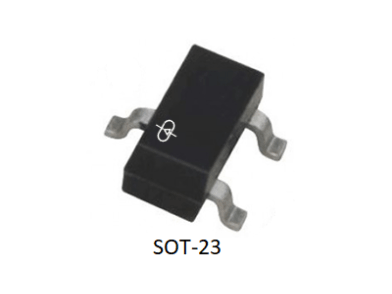

SOT-23 Single Switching Diodes in SMD Plastic Package

Mobirise

LL4148/ LL4448

SOD-80C (Mini MELF) Hermetically Sealed Glass SMD Package

Mobirise

1N4148/ 1N4448

High Speed Silicon Switching Diode
DO-35 Hermetically Sealed Glass Axial Leaded Package

Mobirise

1N914

DO-35 Hermetically Sealed Glass Axial Leaded Package


Mobirise

LS4148/LS4448

LS-34 (Quadro MELF) Hermetically Sealed Glass SMD Package


Mobirise

BZX384C Series (200mW)

SOD-323 SMD Plastic Package
(Vf < 1.0V at If = 10mA, 4.7V to 75V)

Mobirise

BZT52C XXS Series (200mW)

SOD-323 SMD Plastic Package
(Vf < 1.0V at If = 10mA , 4.3V to 39V)

Mobirise

BZX84C Series (300mW)

SOT-23 SMD Plastic Package
(Vf < 0.9V at If = 10mA, 3.3V to 47V)

Mobirise

CMBZ 52XX Series (300mW)

SOT-23 SMD Plastic Package
(Vf < 0.9V at If = 10mA, 3V to 47V)

Mobirise

BZT52C Series (400mW)

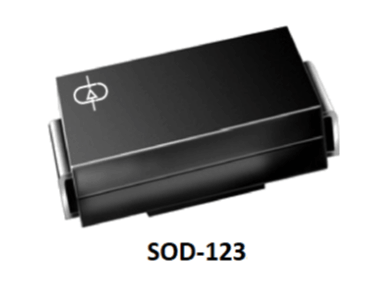

SOD-123 SMD Plastic Package
(Vf < 1.0V at If = 10mA, 4.7V to 39V)

Mobirise

MMSZ Series (500mW)

SOD-123 SMD Plastic Package
(Vf < 0.9V at If = 10mA, 4.7V to 56V)

Mobirise

MM1Z 52XXB Series (500mW)

SOD-123 SMD Plastic Package
(Vf < 0.9V at If = 10mA, 2.7V to 47V)

Mobirise

LL 52XXB Series (500mW)

SOD-80C (Mini MELF) Hermetically Sealed Glass SMD Package
(Vf < 1.1V at If = 200mA, 4.7V to 47V)

Mobirise

1N52XXB Series (500mW)

DO-35 Hermetically Sealed Glass Axial Package
(Vf < 1.1V at If = 200mA, 2.7V to 120V)

Mobirise

BZX55C Series (Low Current, 500mW)

DO-35 Hermetically Sealed Glass Axial Package
(Vf < 1.2V at If = 200mA, 2.4V to 27V, Vf < 1.5V at If = 200mA, 30V to 120V)

Mobirise

CZ1W Series (600mW)

SOT-23 SMD Plastic Package
(Vf < 1.5V at If = 200mA, 4.7V to 47V)



Mobirise

1N47XXA Series (Professional Grade, 1W)

DO-41 Hermetically Sealed Glass Axial Package
(Vf < 1.1V at If = 200mA, 3.3V to 120V)

Mobirise

BZX85C Series (1.3W)

DO-41 Hermetically Sealed Glass Axial Package
(Vf < 1V at If = 200mA, 4.7V to 100V)


Mobirise

ZMY Series (1.3W)

LL-41 (MELF) Hermetically Sealed Glass SMD Package
( Vf < 1.2V at If = 200mA, 4.7V to 100V)


Mobirise

DB3/ DB4 (150mW)

DO-35 Hermetically Sealed Glass Axial Package




Mobirise

DB3-22 (150mW)

DO-35 Hermetically Sealed Glass Axial Package



Mobirise

LLDB3 (500mW)

SOD-80C (Mini MELF) Hermetically Sealed Glass Axial Package



Mobirise

BS170

N-Channel MOSFET
TO-92 Leaded Plastic Package



Mobirise

CDA 20N60

TO-3PN Fully Isolated Leaded Plastic Package
Application Power Switch Circuit for Charger and Adapters N-Channel Power MOSFET

Mobirise

CDA 20N60

TO-3PN Leaded Plastic Package-N-Channel Power MOSFET



Mobirise

CD 435N36K

SEMIPACK 4 Module
Application Rectifiers for Drives, UPS, Battery Charger
Rectifier Diode Module

Mobirise

CMBD 7000

SOT-23 SMD Plastic Package
Dual Switching Diode






Mobirise

MM 3Z Series (300mW)

SOD-323 SMD Plastic Package
ZENER Diode 300mW, at IZ 5mA






Mobirise

K 0900G/ 1050G/ 1080G/ 2000G/ 2200G/ 2400G/ 2600G

DO-15 Leaded Plastic Package
SIDAC





Mobirise

1N53 33B/ 54B/55B/ 56B/57B/ 58B/ 59B/ 60B/ 61B/ 62B/ 63B/ 64B/ 65B/ 66B/ 67B/ 68B/ 69B/ 70B/ 71B/ 72B/ 73B/ 74B/ 75B/ 76B/ 77B/ 78B/ 79B/ 80B/ 81B/ 82B/ 83B/ 84B/ 85B/ 86B/ 87B/ 88B/

DO-15P Axial Leaded Plastic Package, 5W Zener Diode (Zener Voltage Tolerance is +10%)

Mobirise

BZV55CXX

LL-34 Glass Case MiniMELF
Silicon Planer 500mW Zener Rectifier
